SATA omvormer Delock

Onlinekabelshop.nl

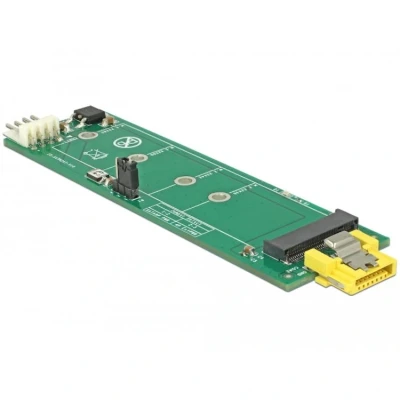

Description This converter by Delock enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format. The converter can be connected to a SATA pin 8 power plug and does not need an additional power supply. Additionally, the converter can be connected to a standard SATA port, then a power supply to the 4 pin power connector is needed.63917 Video ()NoteIf the converter is connected to a SATA pin 8 power port, a few SSDs will not get enough power. In that case a power supply needs to be connected to the 4 pin power plug. Specification• Connectors: 1 x SATA 6 Gb/s receptacle pin 8 power with latchtype>1 x 67 pin M.2 key B slot 1 x Floppy 4 pin power plug (power supply for standard SATA ports)• Interface: SATA• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• LEDs for power and activity• Jumper to set the power supply• Data transfer rate up to 6 Gb/s• Dimensions (LxWxH): ca. 114 x 30 x 11 mm System requirements • Linux Kernel 3.10 or above• Windows 7/7-64/8.1/8.1-64/10/10-64• One free SATA pin 8 power plug or• One free SATA port + 4 pin power connector Package content • Converter• Power cable 4 pin to SATA, length ca. 10 cm• User manual

Allekabels

Type: Converter, Aansluiting 1: SATA Pin 8 netsnoer, Aansluiting 2: M.2 Key B sleuf
