SDI Splitter Delock
Beschrijving
Onlinekabelshop.nl

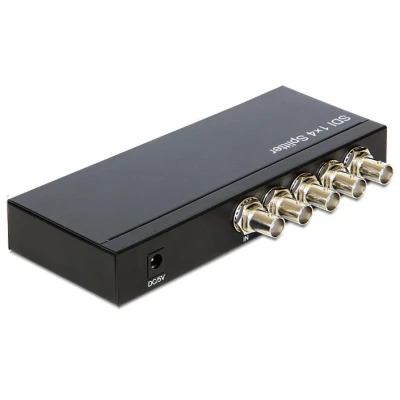

Description This SDI splitter by Delock can be used to receive signals of one SDI input source, such as a DVR, an HD-SDI camera or other SDI device, to up to 4 different output devices such as SDI monitors.07/2018 New power supply Specification• Connectors: Input: 1 x BNC female (3G-SDI) 1 x 5 V DC jack Output: 4 x BNC female (3G-SDI)• Supported resolution: SD 480i, 525i and 625i HD 720p 24, 25, 30, 50 and 60 Hz HD 1080i 50, 60 Hz HD 1080p 24, 25, 30, 50 and 60 Hz• Robust metal housing• Power consumption: max. 1.2 W•Dimensions (LxWxH): ca. 162 x 82 x 25 mmPower supply specification• Wall power supply• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A• Output: 5 V / 1 A• Ground outside, plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package content • 3G-SDI splitter• Power supply
Beschrijving
(2)
Description This SDI splitter by Delock can be used to receive signals of one SDI input source, such as a DVR, an HD-SDI camera or other SDI device, to up to 4 different output devices such as SDI monitors.07/2018 New power supply Specification• Connectors: Input: 1 x BNC female (3G-SDI) 1 x 5 V DC jack Output: 4 x BNC female (3G-SDI)• Supported resolution: SD 480i, 525i and 625i HD 720p 24, 25, 30, 50 and 60 Hz HD 1080i 50, 60 Hz HD 1080p 24, 25, 30, 50 and 60 Hz• Robust metal housing• Power consumption: max. 1.2 W•Dimensions (LxWxH): ca. 162 x 82 x 25 mmPower supply specification• Wall power supply• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A• Output: 5 V / 1 A• Ground outside, plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm Package content • 3G-SDI splitter• Power supply
AllekabelsAansluiting 1: 1x BNC female Aansluiting 2: 4x BNC female Max. resolutie: 1080p@60Hz
