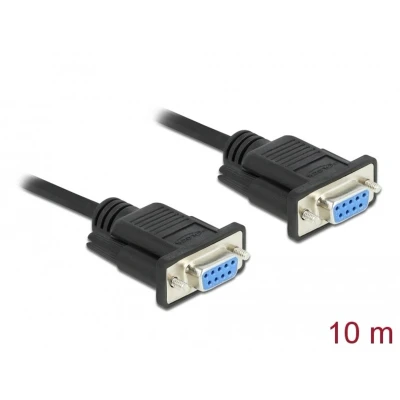

Seriële kabel RS 232 D SUB 9 Vrouw tot vrouwelijke NULL modem met smalle plugbehuizing Volledige handshaking 10 m

Description This serial cable by Delock is a full handshake null modem cable with RTS / CTS and DTR / DTS data flow control. This cable offers the possibility to connect RS-232 devices directly with each other. Optionally, devices can be supplied with power via the RI line. Mini D-Sub 9 connector These cables fit any RS-232 port, as the mini D-Sub 9 connectors (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections can be used next to each other. Specification • Connectors: 1 x serial D-Sub 9 female with screws > 1 x serial D-Sub 9 female with screws • Cable gauge: 28 AWG • Full handshaking cable • Pin assignment: 2 – 3, 3 – 2, 4 – 6, 6 – 4, 5 – 5, 7 – 8, 8 – 7, 9 – 9, shielded • Colour: black • Insulator: PVC • Screw type: #4-40 UNC • Cable diameter: ca. 5 mm • Cable length incl. connectors: ca. 10 m System requirements • A free D-Sub 9 male port Package content • Cable
