Showtec RDM Splitter Pro

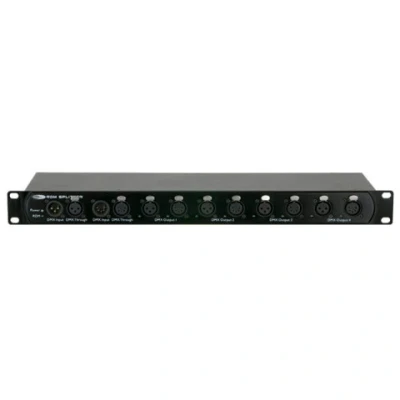

Showtec RDM Splitter Pro 4 Channel DMX Booster with RDM 3 & 5p XLR • Regenerates & Boosts DMX/RDM signal • Optical isolated on each in- and output port • DMX Indication LEDs on in-& outputs • 3 & 5P XLR outputs The Showtec RDM Splitter Pro is a universal DMX-512 splitter to fulfil the demands of pro users. All outputs are equipped with separated optical isolated electronics to ensure that DMX/RDM signal will be distributed and regenerated in the most optimum quality. The signal indication LED's show the speed and status of the present signal on the input and outputs. All DMX/RDM inputs and outputs supports RDM Protocol and are equipped with both 3 and 5 pin XLR connectors. The rugged housing is 19" rack mountable and has a M10 mounting point to assamble a clamp for rigging use. Specifications Input connectors: 3&5 Pole XLR M Output connectors: 3&5 Pole XLR F Power input: 100 ~ 240VAC, 50/60Hz Dimensions: 483 x 134 x 46 mm (LxWxH) Weight: 2,8 kg
