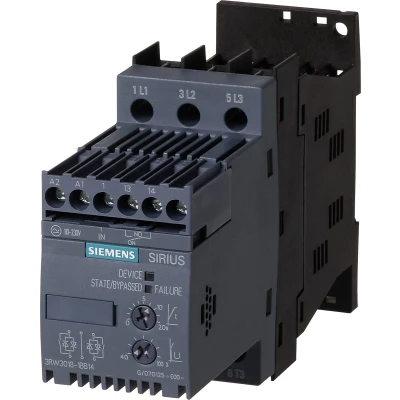

Siemens 3rw30 softstarter 7 5kw bij 400v 17 6a 40 graden us 110 230v vac dc gestuurde fasen 2 3rw3018 1bb14

Bol Partner

Siemens 3RW3018-1BB14 3RW30181BB14 Softstarter Motorvermogen bij 400 V 7.5 kW Motorvermogen bij 230 V 4 kW 400 V/AC Nom SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors. Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA). The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection. With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. Simple, efficient and always up to date - SIRIUS modular system. Features 3RW30: Optimale aanpassing aan de gewenste aandrijving door afzonderlijke potentiometers voor startspanning (40...100%) en oplooptijd tot 20 s, alleen Softstart, eenvoudige montage door simpele 4-aderige motorvoeding, 70% plaatsbesparing t.o.v. sterdriehoek-combinatie, stuurvoedingsspanning 110 - 230V AC/DC. 3RW40: Geïntegreerde apparaatbescherming voorkomt overbelasting van het apparaat, seriematig met de hand of op afstand Elektronische motoroverbelastingsbeveiliging, instelbare stroombegrenzing Verhoging van de prestatie door het achteraf plaatsen van ventilators. Highlights Nominale spanning: 400 V/AC Nominale stroom: 17.6 A Motorvermogen bij 230 V: 4 kW Leveromvang

Conrad

SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous...
