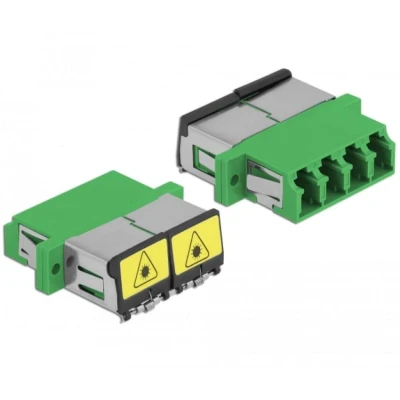

Description With this LC Quad coupling by Delock, optical fiber male connectors can be easily connected to each other. The coupling enables a direct connection to the optical fiber cable and is suitable for simple mounting in optical fiber connection boxes, cabinets and patch panels.Protection against laser radiationThe integrated flip ensures protection against laser radiation.Protection by dust coverThe coupling is equipped with an appropriate cap to protect the sleeve from dust and to keep it clean. Specification • Connectors: 1 x LC Quad female > 1 x LC Quad female• For single-mode fiber• Ceramic sleeve• With a laser protection flip and a dust protection cap• Mounting via metal holder or screws• 2 x mounting holes• Mounting hole diameter: 2.3 mm• Pitch of screw hole: ca. 30.7 mm• Panel cut-out (WxH): ca. 26.6 x 9.5 mm• Operating temperature: -20 °C ~ 70 °C• Material: plastic• Colour: green• Dimensions (LxWxH): ca. 29.2 x 25.6 x 9.3 mm System requirements • A free LC Quad plug Package content • LC Quad coupler

Allekabels

Aansluiting 1: LC female Aansluiting 2: LC female Toepassing: Singlemode Extra: Met laserbescherming
