SMA antenne Delock
Beschrijving
Onlinekabelshop.nl

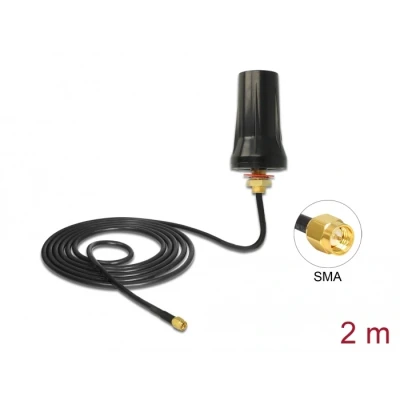

Description This ISM antenna by Delock can be installed outdoors and indoors and can be used with the 433 MHz band. Specification• Connector: SMA plug• Frequency range: 433 MHz +/- 3 MHz• Antenna gain: 2 dBi• Impedance: 50 Ohm• Polarisation: linear vertical• VSWR: 2.0• Operating temperature: -40 °C ~ 85 °C• Protection class: IP67• Screw mounting 13 mm central hole• Thread length: 19.5 mm• Thread: M12• Colour: black• Dimension: (L x Ø): ca. 75.5 x 45.2 mm• Cable category: coaxial• Cable type: RG-58 U• Cable attenuation: 0.35 dB @ 400 MHz per meter• Cable diameter: 4,95 mm• Cable length incl. connector: ca. 2 m System requirements • Device with a free SMA jackPackage content • ISM 433 MHz antenna• Screw nut
Vergelijk aanbieders (1)
Beschrijving
(1)
Description This ISM antenna by Delock can be installed outdoors and indoors and can be used with the 433 MHz band. Specification• Connector: SMA plug• Frequency range: 433 MHz +/- 3 MHz• Antenna gain: 2 dBi• Impedance: 50 Ohm• Polarisation: linear vertical• VSWR: 2.0• Operating temperature: -40 °C ~ 85 °C• Protection class: IP67• Screw mounting 13 mm central hole• Thread length: 19.5 mm• Thread: M12• Colour: black• Dimension: (L x Ø): ca. 75.5 x 45.2 mm• Cable category: coaxial• Cable type: RG-58 U• Cable attenuation: 0.35 dB @ 400 MHz per meter• Cable diameter: 4,95 mm• Cable length incl. connector: ca. 2 m System requirements • Device with a free SMA jackPackage content • ISM 433 MHz antenna• Screw nut
