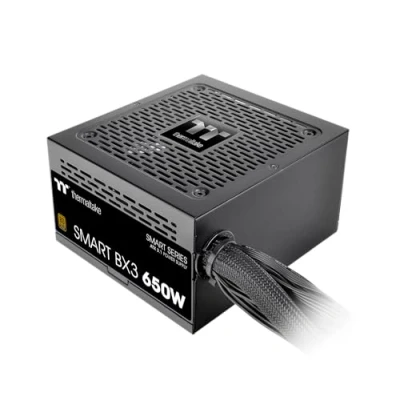

Thermaltake Smart BX3 Bronze PC netvoeding 650 W ATX 80 Plus

Unmatched Reliability ATX 3.1 Power SupplyThe Smart BX3 series is designed to meet ATX 3.1 standards, offering 550W, 650W, and 750W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty. ATX 3.1 ReadySmart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards. Be Smart, Stay QuietEquipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise. High Quality 105°C/221°F Main CapacitorHigh quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable. High Amperage Single +12V Rail & DC to DC DesignPowerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation. Non-Modular Flat Cable DesignSmart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Belangrijkste kenmerken: Energie: * Totale vermogen: 650 W * AC-ingangsspanning: 100 - 240 V * Piekvermogen: 650 W AC * Ingangsfrequentie: 50/60 Hz * Ingangsstroom: 15 A * Vermogensfactorcorrectiefilter (PFC): Actief * Gecombineerd vermogen (+3.3V): 110 W * Gecombineerd vermogen (+12V): 650 W * Gecombineerd vermogen (+5V): 110 W * Gecombineerd vermogen (-12V): 3,6 W * Gecombineerd vermogen (+5Vsb): 15 W * Maximaal uitgangsvermogen (+3.3V): 18 A * Maximaal uitgangsvermogen (+12V): 54,2 A * Maximaal uitgangsvermogen (+5V): 18 A * Maximaal uitgangsvermogen (-12V): 0,3 A * Maximaal uitgangsvermogen (+5Vsb): 3 A * Uitschakeltijd: 150 ms * Prestaties: * Doel: PC-voeding (PSU) * Formaat: ATX * 80 Plus certificering: 80 PLUS Bronze * ATX-versie: 3.1 * Slaapstand: Ja * Ontwerp: * Productkleur: Zwart * Ventilatordiameter: 12 cm * Gewicht en afmetingen: * Breedte: 150 mm * Diepte: 86 mm * Hoogte: 140 mm
