Tritonaudio BigAmp Studio preamps

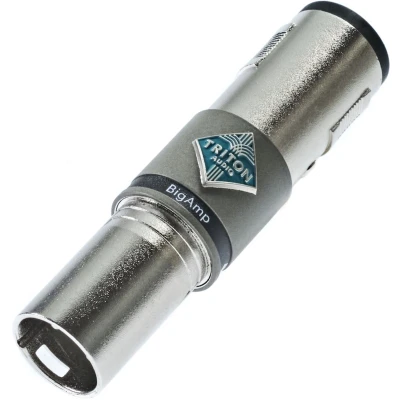

BigAmp is a small sized high-quality FET instrument preamp which performs equally well on stage asit does in a studio environment. It has a 1/4" female jack input which accepts signals ranging fromthe pickup of an electric guitar to the line level output of a synthesizer. BigAmp's low noise class Aamplifier provides 3 dB of high-end amplification and converts the instrument output signal fromunbalanced to balanced. An extra benefit might be BigAmps small size, making it super portable.OperationStick your BigAmp on an XLR cable, plug in your electric guitar, bass (or any other instrument with ajack output) and switch on phantom power. BigAmp goes directly into a balanced input of a preampor interface.To achieve the best sonic result, it is advised to use a short TS/Jack cable between BigAmp and yourinstrument.Recommended applicationYour BigAmp is an ideal companion for DAW recording. By recording a clean signal directly to diskyou get the advantage of being able to shape the sound of your recorded track with your favoriteplugin's during mixdown.Circuit topologyBigAmp utilizes a low noise FET amplifier circuit, followed by a low impedance, balanced outputbuffer which reveals every detail and offers high-end sound quality.Features• Low noise Class A FET amplifier• 3dB amplification• Female 1/4” TS jack input• Balanced XLR output• Lots of headroom• Frequency response 10Hz-100kHz (+/- 1dB)• Z-in 1 mΩ• Circuit is powered with 48V phantom power
