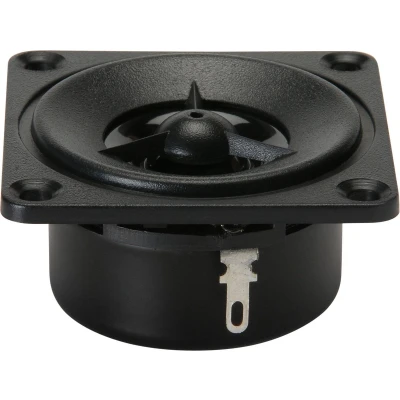

Visaton SC 5 Dome Tweeter

13 mm (0.5") Magnetically shielded polycarbonate dome driver for the high-frequency range above 4,000 Hz.   Highlights Great for compact speaker designs Magnetically shielded Special grill for excellent dispersion 4 kHz to 22 kHz usable frequency response High power handling and shielded design   Product details Visaton SC 5 1/2" Polycarbonate Tweeter   The SC 5 1/2" dome tweeter from Visaton is a natural choice for speaker builders designing desktop recording monitors, surround sound multimedia speakers, or center channels.     Visaton's SC 5 shielded 1/2" polycarbonate dome tweeter is built for superior off-axis response, high sensitivity, and a relatively flat frequency response from 4,000 Hz to 10,000 Hz. Above 10,000 Hz, the SC5 features a rising response to add ambiance and sparkle. The small size of this tweeter lends itself to be used in small 2-way monitors, center-channel speakers, and multimedia speakers where a shielded design is desired.   Visaton artikelnummer: 8005

10 mm HiFi polycarbonaat tweeter met een met magnetische vloeistof gekoelde spreekspoel. Samen met de afgeschermde middentoner VS-SC8 zeer geschikt als kleine 2-weg systemen te gebruiken in surround-center speakers en in Multi-Media toepassingen. Impedance (Ohm) 8 Nominal power (W) 60* Maximal power (W) 100* Nominal sound pressure (dB) 90 Frequency response(-8 dB)(Hz) 4 kHz – 22 kHz Resonace: 2, 5 kHz

Type: Dome tweeter Luidspreker: Ø 13 mm Piekvermogen: 100 watt Impedantie: 8 Ohm
