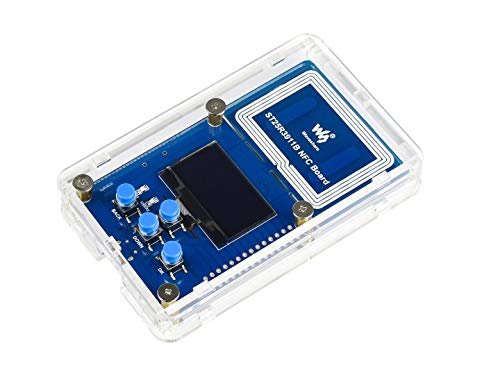

Waveshare ST25R3911B NFC Development Kit with AT32F413RCT7 Controller Reader OLED Display Supports Multi Protocols

Multi protocols support: ISO18092, ISO14443A, ISO14443B , ISO15693, FeliCa. Differential antenna design, output power up to 1.4W, longer sensing distance Embedded low-power capacitive sensor, allows sensing and capacitive wakeup, detecting the nearby card without enabling the magnetic field of the reader. AT32F413RCT7 controller, easy for learning, evaluating, or direct integration, needs no other external controller 1.3" OLED display, allows visual operation Onboard Static RAM, additional space to the inner RAM Micro TF slot, supports external TF card for storing data to be transferred via NFC 4x buttons, 2x user indicators, convenient for debugging Onboard programming interface, UART debugging interface, breakout all the unused IO pins for connecting other user peripherals Customized acrylic case, protective and dust-proof, better looking Comes with development resources and manual
