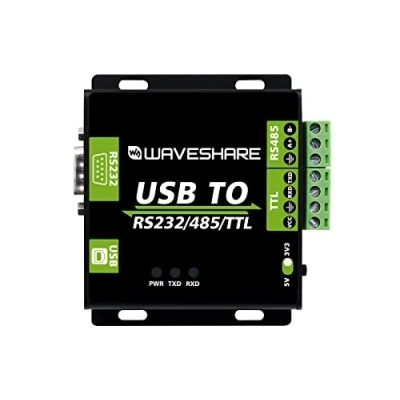

Waveshare USB to RS232/485/TTL Interface Converter Power and ADI magnetical Industrial Isolation

Adopt original FT232RL, fast communicating, stable and reliable, better compatibility Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable 3 LEDs for indicating the power and transceiver status
