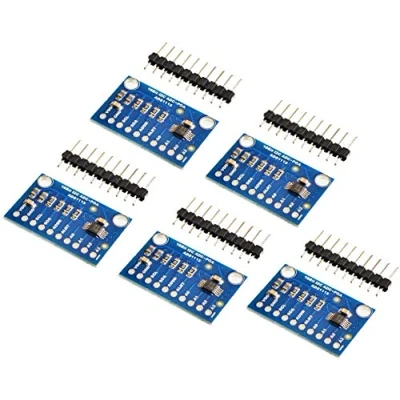

5pcs ADS1115 Module ADC 16Bit I2C 4 Channel ADS 1115
Beschrijving
Amazon
【ADS1115】 Bitrate ADC: 16 Bit. Type of interface: I2C. Channels: 4 channels AN0 AN1 AN2 AN3 or 2 differential inputs. Input voltage: 2.0 ~ 5.5 V, channel input voltage: 0-VDD. Continuous mode: Only 150 uA. Single shot mode: Auto power off. Programmable data rate: 8sps-860sps. 【Easy operation】 Programmed input range control. 7 types of input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096V, -6.144V ~ + 6,144V. 【Design compact】 7-bit I2C addresses between 0x48-0x4B. 【COMPATABLITY】 Uses: Portable instrumentation, consumer goods, battery control, temperature measurement, factory automation and process controls. 【Fast delivery】 Fast and high quality delivery of Spain buying in TECNOIOT
Vergelijk aanbieders (1)
Beschrijving
(1)
【ADS1115】 Bitrate ADC: 16 Bit. Type of interface: I2C. Channels: 4 channels AN0 AN1 AN2 AN3 or 2 differential inputs. Input voltage: 2.0 ~ 5.5 V, channel input voltage: 0-VDD. Continuous mode: Only 150 uA. Single shot mode: Auto power off. Programmable data rate: 8sps-860sps. 【Easy operation】 Programmed input range control. 7 types of input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096V, -6.144V ~ + 6,144V. 【Design compact】 7-bit I2C addresses between 0x48-0x4B. 【COMPATABLITY】 Uses: Portable instrumentation, consumer goods, battery control, temperature measurement, factory automation and process controls. 【Fast delivery】 Fast and high quality delivery of Spain buying in TECNOIOT
Productspecificaties
