5pcs Digispark ATTINY85 General Micro USB Development Board For

Prijzen vanaf
21,18

Beschrijving

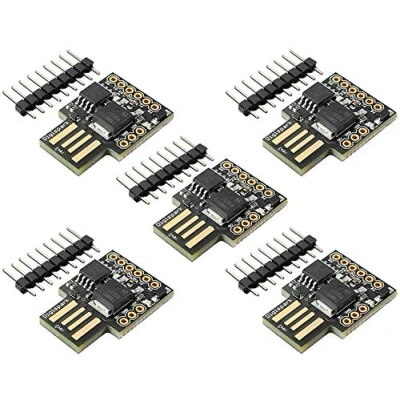

Amazon 【Digispark ATTINY85】 The Digispark is an Attiny85 based microcontroller development board similar to the line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar IDE the Digispark is a great way to jump into electronics, or perfect for when is too big or too much. 【Easy operation】 The Digispark is shipped fully assembled except for the two included and easy to solder headers. 【Design compact】 Support for the IDE 1.0+ (OSX / Win / Linux). Power via USB or External Source - 5v or 7-16v (automatic selection) .On-board 150ma 5V Regulator. Built-in USB (and serial debugging) .6 I / O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB). 8k Flash Memory (about 6k after bootloader). 【COMPATABILITY】 I2C and SPI (vis USI) .PWM on 3 pins (more possible with PWM Software). ADC on 4 pins.Power LED and Test / Status LED (on Pin0) 【Fast delivery】 Fast and high quality delivery of Spain buying in TECNOIOT

Vergelijk aanbieders (1)

Shop
Prijs
Verzendkosten
Totale prijs
 21,18
Gratis
 21,18
Naar shop
Gratis Shipping Costs
Beschrijving (1)

【Digispark ATTINY85】 The Digispark is an Attiny85 based microcontroller development board similar to the line, only cheaper, smaller, and a bit less powerful. With a whole host of shields to extend its functionality and the ability to use the familiar IDE the Digispark is a great way to jump into electronics, or perfect for when is too big or too much. 【Easy operation】 The Digispark is shipped fully assembled except for the two included and easy to solder headers. 【Design compact】 Support for the IDE 1.0+ (OSX / Win / Linux). Power via USB or External Source - 5v or 7-16v (automatic selection) .On-board 150ma 5V Regulator. Built-in USB (and serial debugging) .6 I / O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB). 8k Flash Memory (about 6k after bootloader). 【COMPATABILITY】 I2C and SPI (vis USI) .PWM on 3 pins (more possible with PWM Software). ADC on 4 pins.Power LED and Test / Status LED (on Pin0) 【Fast delivery】 Fast and high quality delivery of Spain buying in TECNOIOT


Productspecificaties

Merk TECNOIOT
EAN
  • 7426925369207
