Adapter U.2 SFF 8639 > PCIe x4 met montageplaat Delock

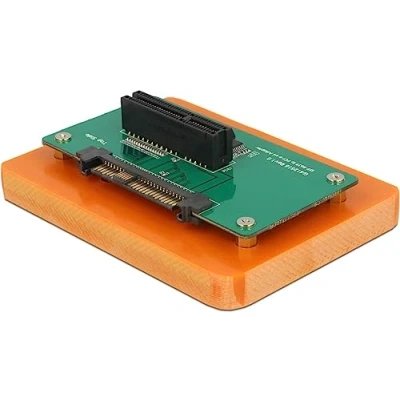

Description This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe slot. To this slot can be connected e.g. PCI Express cards with M.2 slot for M.2 PCIe modules. Specification • Connectors: 1 x U.2 SFF-8639 male > 1 x PCI Express x4, V3.0 • Bootable, ex UEFI version 2.3.1 • Supports NVM Express (NVMe) • Maximum output current: 4 A • Output voltage: 3.3 V • Short circuit protection, over heating protection • ESD protection up to 2 kV • Dimensions (LxWxH): adapter: ca. 85 x 45 x 15 mm fixing plate: ca. 95 x 70 x 10 mm System requirements • Linux Kernel 3.20 or above • Windows 7/7-64/8.1/8.1-64/10/10-64 • A free U.2 SFF-8639 interface Package content • Adapter • Fixing plate • Screws and spacer • User manual
