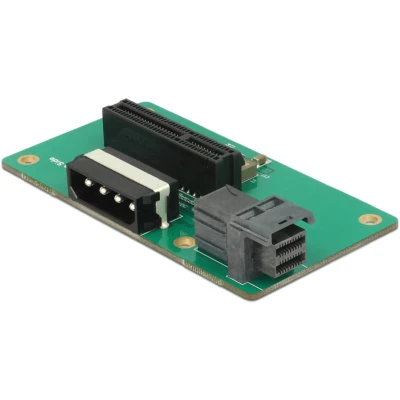

Delock Adapter SFF 8643 > PCIe x4 met montageplaat

Description This Delock adapter can be connected via SFF-8643 interface to the system and provides a PCI Express x4 NVMe slot. To this slot e.g. PCI Express cards with M.2 slot for M.2 PCIe modules can be connected. Specification • Connector: 1 x SFF-8643 > 1 x PCI Express x4, V3.0 1 x 4 pin power connector • Bootable, from UEFI version 2.3.1 • Supports NVM Express (NVMe) • Maximum output current: 4 A • Output voltage: 3.3 V • Short circuit protection, over heating protection • ESD protection up to 2 kV • Dimensions (LxWxH): adapter: ca. 85 x 45 x 15 mm fixing plate: ca. 95 x 70 x 10 mm System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.10 / Kernel 4.x.x • A free SFF-8643 interface Package content • Adapter • Fixing plate • Screws and spacer • User manual
