Delock 3 poorts SATA und 2 sleuven M.2 Key B PCI Express x4 Karte L

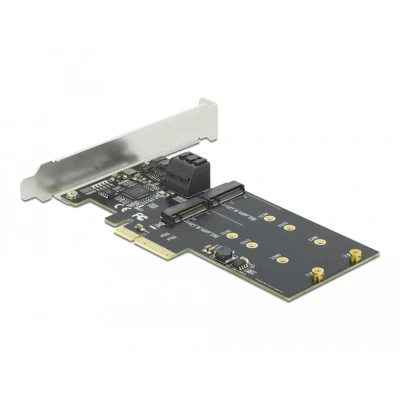

Description The PCI Express card by Delock expands a PC by three internal SATA ports and two M.2 slots. Different devices such as SSDs, hard drives, DVD-drives etc. and two M.2 modules in 2280, 2260, 2242 or 2230 format can be connected to the card. Specification • Connectors: internal: 3 x SATA 6 Gb/s 7 pin plug 2 x 67 pin M.2 key B slot 1 x PCI Express x4, V3.0 • Chipset: JMicron JMB585 • 5 x LED indicator • Interface: SATA • Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA • Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported • Supports Native Command Queuing (NCQ) • Supports S.M.A.R.T. • Supports TRIM • Supports DevSleep • Hot Swap • Bootable System requirements • Linux Kernel 3.3 or above • Windows 8.1/8.1-64/10/10-64 • PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card • Low profile bracket • 3 x SATA cable, length ca. 35 cm • Screwdriver • User manual

De 3 Port SATA en 2 slot M.2 key B PCI Express x4 Card Low Profile van Delock breidt de PC uit met drie interne SATA poorten en twee M.2 slots. Op deze kaart kunnen diverse apparaten worden aangesloten, zoals SSD's, harde schijven, DVD-stations, etc. en twee M.2-modules in 2280-, 2260-, 2242- of 2230-formaat.
