Delock 4 poorts SATA en 1 sleuf M.2 Key B PCI Express x4 Karte Laag

Onlinekabelshop.nl

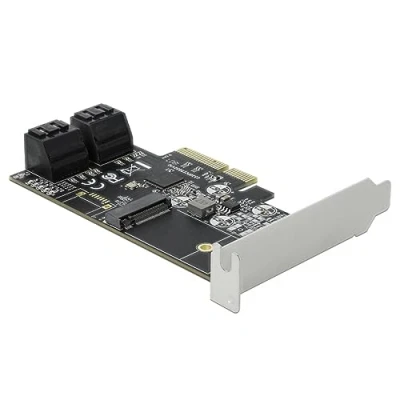

Description The PCI Express card by Delock expands a PC by four internal SATA ports and one M.2 slot. Different devices such as SSDs, hard drives, DVD-drives etc. and one M.2 module in 2242 or 2230 format can be connected to the card. Specification• Connectors: internal: 4 x SATA 6 Gb/s 7 pin plug 1 x 67 pin M.2 key B slot 1 x PCI Express x4, V3.0• Chipset: JMicron JMB585• 5 x LED indicator• Interface: SATA• Supports M.2 modules in format 2242 and 2230 with key B or key B+M based on SATA• Maximum height of the componentson the module: 1.5 mm, application of double-sided assembled modules supported• Supports Native Command Queuing (NCQ)• Supports S.M.A.R.T.• Supports TRIM• Supports DevSleep• Hot Swap• Bootable System requirements • Linux Kernel 3.3 or above• Windows 7/7-64/8.1/8.1-64/10/10-64• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card• Low profile bracket• 4 x SATA cable, length ca. 50 cm• M.2 mounting material• User manual

Amazon

Aansluitingen: intern: 4 x SATA 6 Gb/s 7-pins stekker 1 x 67 pin M.2 Key B-slot 1 x PCI Express x4, V3.0 Chipset: JMicron JMB585 5 x led-display Ondersteunt S.M.A.R.T. Ondersteunt Trim Ondersteunt M.2 modules in het formaat 2242 en 2230 met Key B of Key B+M op SATA basis Maximale hoogte van de componenten op de module: 1,5 mm, gebruik van tweezijdig uitgeruste modules mogelijk

Bol Partner

DeLOCK 90396. Hostinterface: PCIe, Output interface: M.2,SATA. Kleur van het product: Zwart, Groen, Grijs. Data transfer snelheid (max): 6 Gbit/s. Meegeleverde kabels: SATA
