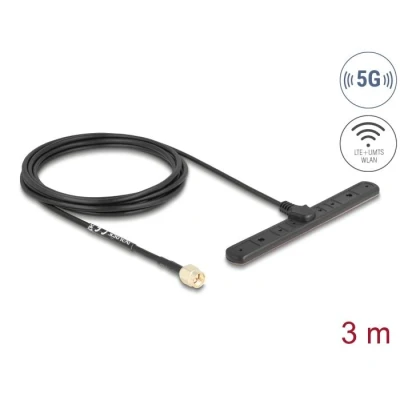

Delock 5G LTE Antenna SMA plug 3 dBi omnidirectional fixed with connection cable RG 174 m adhesive mounting outdoor black

Description This 5G LTE antenna by Delock allows the usage of different 5G LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa. 5G the new mobile radio standard 5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency. Specification • Connector: 1 x SMA plug • GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, LoRa • Frequency range: 698 - 960 MHz 1710 - 3800 MHz • Antenna gain: 3 dBi • Impedance: 50 Ohm • VSWR: 2.0:1 • Cable type: RG-174 • Cable attenuation: 0.9 dB @ 800 MHz per meter • Cable colour: black • Cable length: ca. 3 m • Polarisation: linear, vertical • Operating temperature: -40 °C ~ 70 °C • Housing material: ABS • Protection class: IP67 • Colour: black • Dimensions (LxWxH): ca. 107.0 x 12.8 x 4.0 mm System requirements • Device with a free SMA jack Package content • Antenna

Type: RG-174 Impedantie: 50 Ohm Aansluiting: 1 × SMA male Versterking: 3 dBi Frequentie: 698~960 MHz, 1710~3800 MHz
