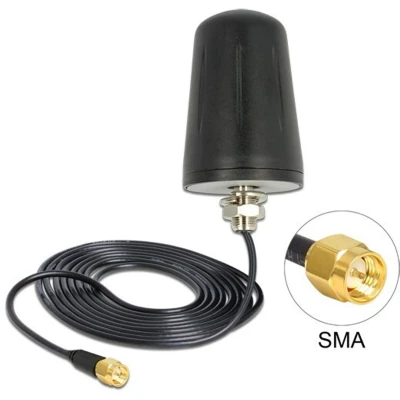

Description This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors. It is completely compatible to ZigBee 868 MHz and Z-Wave 868 MHz. Specification • Connector: 1 x SMA plug • Frequency range: 868 MHz • Antenna gain: 0 dBi • Impedance: 50 Ohm • Polarisation: linear, vertical • VSWR: 2.0 • Transmission power: 10 W • Operating temperature: -30 °C ~ 70 °C • Colour: black • Housing material: ABS UV resistant • Screw mounting with 13.5 mm bore hole • Thread length: 18 mm • Protection class: IP67 • Cable: coaxial • Cable type: RG-174 • Cable colour: black • Cable attenuation: 1.0 dB @ 868 MHz per meter • Cable diameter: ca. 2.7 mm • Cable length incl. connector: ca. 3 m • Dimensions (LxD): ca. 75.0 x 53.5 mm System requirements • Device with a free SMA jack Package content • Antenna
