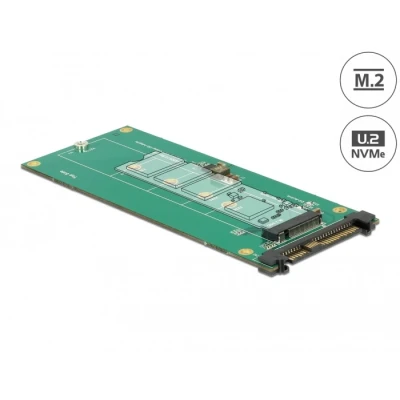

Delock Converter U.2 SFF 8639 NVMe>1 x M.2 Key M

Description This converter by Delock enables the connection of a M.2 PCIe SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 interface. Specification• Connectors: 1 x U.2 SFF-8639 male 1 x 67 pin M.2 key M slot• Interface: PCIe (2 or 4 lanes)• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe• Maximum height of the components on the module: 1.5 mm, application of double- sided assembled modules supported• LEDs for power and activity• Bootable• Supports NVM Express (NVMe)• Maximum output current: 4 A• Over current protection, over heating protection, short circuit protection• ESD protection up to 2 kV• Dimensions (LxWxH): ca. 130 x 52 x 6 mm System requirements • Linux Kernel 3.3 or above• Windows 7/7-64/8.1/8.1-64/10/10-64/11• A free U.2 SFF-8639 interface Package content • Converter• Mounting material• User manual
