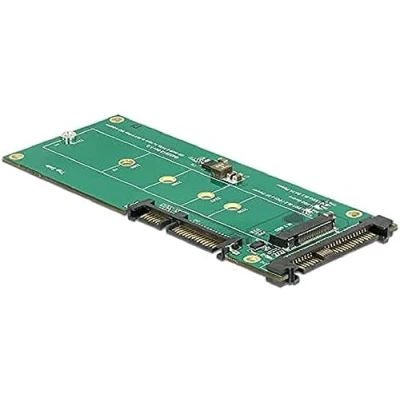

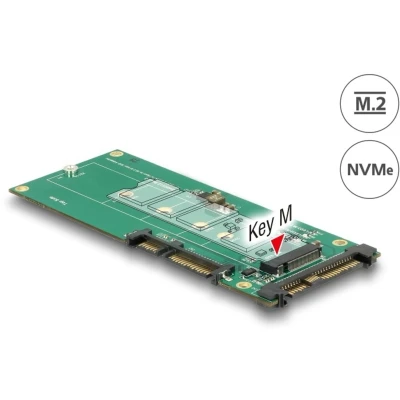

Delock Converter U.2 SFF 8639 NVMe / SATA 22 pin>1 x M.2 Key M

Description This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the possibility to connect a PCIe or SATA M.2 SSD. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the U.2 interface while using a PCIe M.2 SSD. Specification • Connectors: 1 x U.2 SFF-8639 male (for PCIe SSDs 2 or 4 lanes) 1 x SATA 6 Gb/s 22 pin receptacle (for SATA SSDs) 1 x 67 pin M.2 key M slot• Interface: SATA / PCIe (2 or 4 lanes)• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported• LEDs for power and activity• Bootable• Supports NVM Express (NVMe)• Maximum output current: 3 A• Over current protection, over heating protection, short circuit protection• ESD protection up to 2 kV• Dimensions (LxWxH): ca. 130 x 52 x 6 mm System requirements • Linux Kernel 3.20 or above• Windows 7/7-64/8.1/8.1-64/10/10-64/11• A free U.2 SFF-8639 interface (PCIe SSD) or• A free SATA 22 pin interface (SATA SSD) Package content • Converter• Mounting material• User manual
