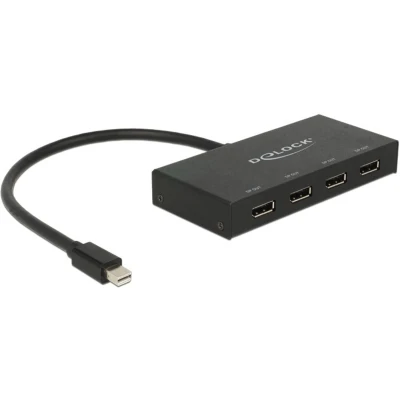

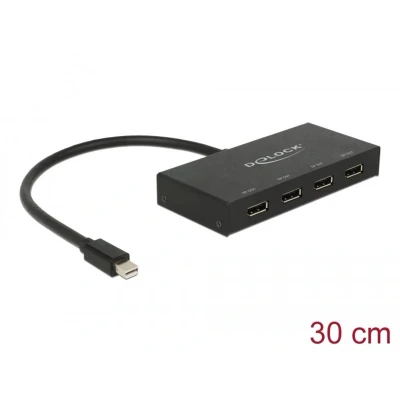

Delock Displayport 1.2 Splitter 1 x mini in > 4 Display

Description This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to four connected displays. Thereby one DisplayPort connection can be used to operate four DisplayPort monitors. The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters. Specification • Connectors: Input: 1 x mini DisplayPort 20 pin male 1 x 5 V DC jack Output: 4 x DisplayPort 20 pin female• Chipset: STDP4320• DisplayPort 1.2a specification• Active converter, Single / Multi Stream Transport Hub (SST / MST)• Maximum resolution (depending on the system and the connected hardware): DisplayPort 1.1 or 1.2 Single Stream Transport (SST): up to 1920 x 1080 @ 60 Hz (mirrored) DisplayPort 1.2 Multi Stream Transport (MST): up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirrored or extended) max. 4x 1920 x 1080 @ 60 Hz• DisplayPort output supports Dual Mode DP++• Supports audio and video signals• Supports Eyefinity / Single Large Surface (SLS)• Audio input formats: 7.1 channel up to 192 kHz sample rate• Metal housing• Cable length without connectors: ca. 30 cm• Colour: black• Dimensions (LxWxH): ca. 143 x 67 x 23 mm• OS independent, no driver installation necessaryPower supply specification• Wall power supply• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A• Output: 5 V / 2 A• Ground outside, plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9 mm System requirements • One free mini DisplayPort female Package content • DisplayPort Splitter• External power supply• User manual

Brodit 87693 videoaansluiting: DisplayPort Video-uitgang: 4 x DisplayPort Video-ingang: 1 x Mini DisplayPort. Kleur: zwart. Materiaal van de behuizing: metaal. Kabellengte: 0,3 m. Ingangsspanning: 100-240 V. Ingangsfrequentie: 50-60 Hz. Uitgangsspanning: 5 V. Afmetingen (BxDxH): 143 x 67 x 23 mm. Verpakkingswijze: doos.
