Delock DisplayPort 1.4 Splitter 1 x in zu 4

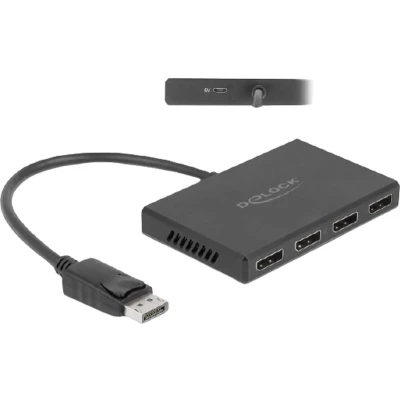

Description This splitter by Delock receives an DisplayPort signal from a PC or laptop and splits it to four connected displays. Thereby one DisplayPort connection can be used to operate four DisplayPort monitors. Multi-Stream Transport (MST) The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display. Dual Mode DP++ The outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters. High resolution Due to the higher bandwidth of DisplayPort 1.4, a total of four monitors with 4K resolution (3840 x 2160) are supported. Specification • Connectors: Input: 1 x DisplayPort male 1 x USB Type Micro-B female (5 V power supply) Output: 4 x DisplayPort female • Chipset: VMM5330, VMM5220 • DisplayPort 1.4 specification • DisplayPort output supports Dual Mode DP++ • Active converter, Single- / Multi-Stream Transport Hub (SST / MST) • Functions: Mirrored or Extended (Windows only) • Supports Display Stream Compression 1.2 (DSC) • Supports HDR (High Dynamic Range) • Supports HDCP 1.4 and 2.2 • Maximum resolution (depending on the system and the connected hardware): DisplayPort 1.4 Multi-Stream Transport (MST): 2 displays: up to 3840 x 2160 @ 60 Hz 4 displays: up to 3840 x 2160 @ 30 Hz DisplayPort 1.4 Multi-Stream Transport (MST) + DSC: 2 displays: up to 7680 x 4320 @ 30 Hz / 5120 x 2880 @ 60 Hz 4 displays: up to 3840 x 2160 @ 60 Hz • Transmission of audio and video signals • Colour: black • Cable length without connectors: ca. 25 cm • Dimensions without cable (LxWxH): ca. 105 x 66 x 15 mm System requirements • Windows 8.1/8.1-64/10/10-64/11 • A free DisplayPort female port • Charger 1 x USB Type-A 5 V / 2 A Package content • DisplayPort Splitter • USB power cable, length: ca. 1 m • User manual

**Beschrijving** Deze splitter van Delock ontvangt een DisplayPort-signaal van een pc of laptop en splitst dit naar vier aangesloten beeldschermen. Hierdoor kan één DisplayPort-aansluiting worden gebruikt om vier DisplayPort-monitoren aan te sturen. **Multi-Stream Transport (MST)** Dit product is een Multi-Stream Transport (MST)-hub en ondersteunt de uitgebreide desktopconfiguratie van DisplayPort. In Windows worden de aangesloten monitoren individueel bestuurd en kunnen ze worden gecombineerd tot één groot scherm. **Dual Mode DP++** De uitgangen zijn geschikt voor dual-mode (DP++), waardoor HDMI- of DVI-monitoren kunnen worden aangesloten met geschikte adapters. **Hoge resolutie** Dankzij de hogere bandbreedte van DisplayPort 1.4 worden in totaal vier monitoren met 4K-resolutie (3840 x 2160) ondersteund. DELOCK DisplayPort 1.4 Splitter: 1 x DisplayPort (in) naar 4 x DisplayPort (uit). Type videopoort: DisplayPort, Video-uitgang: 4x DisplayPort. Maximale resolutie: 7680 x 4320 pixels, Kleur: Zwart, Materiaal: Kunststof. Breedt
