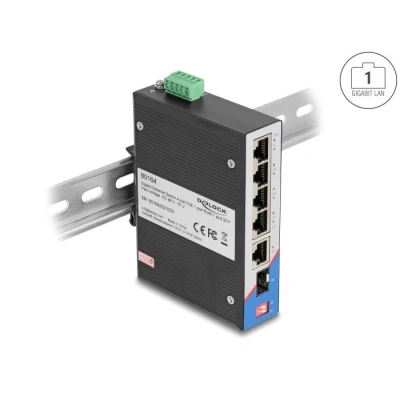

Delock Industrial Gigabit Ethernet Switch 4 Port PoE 1 RJ45 SFP for DIN rail
Beschrijving
Onlinekabelshop.nl
Description This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. The additional SFP slot allows to expand the network with a fiber optic connection.Redundant power supply with 48 V to 57 VThe switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability. Specification• Connectors: 4 x RJ45 jack for 10/100/1000 Mbps Base-T (PoE+) 1 x RJ45 jack for 10/100/1000 Mbps Base-T 1 x SFP slot for 1 Gbps SFP module 1 x 5 pin terminal power connector• Data transfer rate up to 1 Gbps• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab• Supports IEEE 802.3af PoE•Supports IEEE 802.3at PoE+• Industrial standards: IEC61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge) level 4• Industrial standards: IEC 60068-2-6 (Vibration), IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall)• Output power: 30 W per port• VLAN port Isolation• LEDs for status monitoring• Redundant power supply with 48 V to 57 V• Robust metal housing• Fanless• Suitable for 35 mm DIN rail• Protection class: IP40• Operating temperature: -40 °C ~ 85 °C• Dimensions (LxWxH): ca. 116 x 85 x 33 mm System requirements • Power supply with DC 48 V -57 V (not included) Package content • Switch• User manual
Beschrijving
(2)
Description This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components. The four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, so they can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable. The additional SFP slot allows to expand the network with a fiber optic connection.Redundant power supply with 48 V to 57 VThe switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability. Specification• Connectors: 4 x RJ45 jack for 10/100/1000 Mbps Base-T (PoE+) 1 x RJ45 jack for 10/100/1000 Mbps Base-T 1 x SFP slot for 1 Gbps SFP module 1 x 5 pin terminal power connector• Data transfer rate up to 1 Gbps• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab• Supports IEEE 802.3af PoE•Supports IEEE 802.3at PoE+• Industrial standards: IEC61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge) level 4• Industrial standards: IEC 60068-2-6 (Vibration), IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall)• Output power: 30 W per port• VLAN port Isolation• LEDs for status monitoring• Redundant power supply with 48 V to 57 V• Robust metal housing• Fanless• Suitable for 35 mm DIN rail• Protection class: IP40• Operating temperature: -40 °C ~ 85 °C• Dimensions (LxWxH): ca. 116 x 85 x 33 mm System requirements • Power supply with DC 48 V -57 V (not included) Package content • Switch• User manual
AllekabelsMet deze robuuste, industriële Gigabit Ethernet Switch van Delock kunnen verschillende netwerkcomponenten worden verbonden. Vier RJ45 poorten ondersteunen Power over Ethernet volgens IEEE802.3af / 802.3at; hiermee kunnen PoE-geschikte apparaten, zoals IP-camera's of PoE splitters, via de netwerkkabel van stroom worden voorzien. De extra SFP-sleuf maakt het mogelijk om het netwerk uit te breiden met een glasvezelverbinding. Redundante voeding met 48 V tot 57 V De switch kan op twee stroombronnen worden aangesloten, zodat hij permanent op meerdere stroombronnen kan worden aangesloten, wat toepassingen mogelijk maakt die een hoge beschikbaarheid vereisen. • Voeding met DC 48 V - 57 V (niet inbegrepen) • Switch • Handleiding Network Technology Switches / Media Converters Switches
