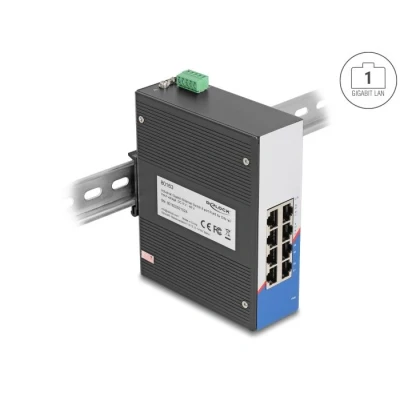

Delock Industrial Gigabit Ethernet Switch 8 Port RJ45 for DIN rail

Onlinekabelshop.nl

Description This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components.Redundant power supply with 9 V to 48 VThe switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability. Specification• Connectors: 8 x RJ45 jack for 10/100/1000 Mbps Base-T 1 x 5 pin terminal power connector• Data transfer rate up to 1 Gbps• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab• Industrial standards: IEC61000-4-2 (ESD), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge) level 4• Industrial standards: IEC 60068-2-6 (Vibration), IEC 60068-2-27 (Shock), IEC 60068-2-32 (Free fall)• LEDs for status monitoring• Redundant power supply with 9 V to 48 V• Power consumption: max. 4 W• Robust metal housing• Fanless• Suitable for 35 mm DIN rail• Protection class: IP40• Operatingtemperature: -40 °C ~ 85 °C• Dimensions (LxWxH): ca. 142 x 116 x 48 mm System requirements • Power supply with DC 9 V - 48 V (not included) Package content • Switch• User manual

Allekabels

Met deze robuuste, industriële Gigabit Ethernet Switch van Delock kunnen verschillende netwerkcomponenten worden verbonden. Redundante voeding met 9 V tot 48 V. De switch kan op twee stroombronnen worden aangesloten, zodat hij permanent met meerdere stroombronnen kan worden verbonden, wat toepassingen mogelijk maakt die een hoge beschikbaarheid vereisen. • Voeding met DC 9 V - 48 V (niet meegeleverd) • Switch • Handleiding Network Technology Switches / Media Converters Switches
