Delock Konverter 1 x RS 232 zu 422/485 mit 15 kV ESD Schutz Net
Beschrijving
Onlinekabelshop.nl

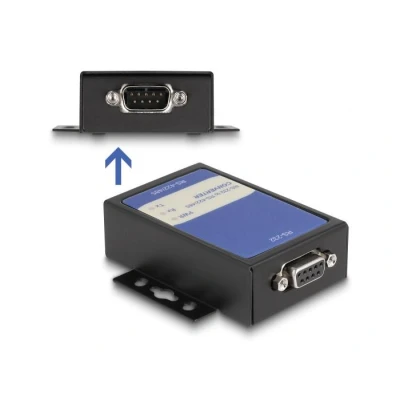

Description The RS-232 to RS-422/485 converter by Delock transmits data between devices with standard RS-232 or RS-422/485 connection and is suitable for fieldbus systems. With its robust metal housing, the converter offers various mounting options and protects against interference from electrostatic discharges (ESD).Terminating resistorsInternal terminating resistors can be switched on or off with pin headers.Two RS-232 to RS-422/485 converters can be connected directly to each other and thus offer a range of up to 1200 m as an RS-232 extension. Specification• Connectors: 1 x serial RS-232 D-Sub 9 pin female with nuts 1 x serial RS-422/485 D-Sub 9 pin male with nuts• Modes 2 wire RS-485 (automatic detection) 4 wire RS-422/485 (automatic detection) 4 wire RS-422 (forced) 4 wire RS-422/485 with RTS/CTS option• 2 x DIP switch: operation modes• Terminators: RS-422/485 and RTS/CTS• Automatical recognition and switching between RS-422 and RS-485• Automatical recognition of the data transfer rate up to 921.6 Kbps• ±15 kV ESD protection on all signal pins• 3 x LED indicator (RX/TX/PWR)• Operating temperature: 0 °C ~ 60 °C• Storage temperature: -10 °C ~ 70 °C• Relative humidity: 5 - 90 % (non condensing)• Housing material: metal• Dimensions (LxWxH): ca. 84.6 x 50.0 x 23.0 mmPower supply specification• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A• Output: 5.0 V / 1.0 A / 5.0 W• Ground outside,plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm• Cable length: ca. 153 cm Package content • Converter• 4 x jumper• Power supply• User manual
Beschrijving
(2)
Description The RS-232 to RS-422/485 converter by Delock transmits data between devices with standard RS-232 or RS-422/485 connection and is suitable for fieldbus systems. With its robust metal housing, the converter offers various mounting options and protects against interference from electrostatic discharges (ESD).Terminating resistorsInternal terminating resistors can be switched on or off with pin headers.Two RS-232 to RS-422/485 converters can be connected directly to each other and thus offer a range of up to 1200 m as an RS-232 extension. Specification• Connectors: 1 x serial RS-232 D-Sub 9 pin female with nuts 1 x serial RS-422/485 D-Sub 9 pin male with nuts• Modes 2 wire RS-485 (automatic detection) 4 wire RS-422/485 (automatic detection) 4 wire RS-422 (forced) 4 wire RS-422/485 with RTS/CTS option• 2 x DIP switch: operation modes• Terminators: RS-422/485 and RTS/CTS• Automatical recognition and switching between RS-422 and RS-485• Automatical recognition of the data transfer rate up to 921.6 Kbps• ±15 kV ESD protection on all signal pins• 3 x LED indicator (RX/TX/PWR)• Operating temperature: 0 °C ~ 60 °C• Storage temperature: -10 °C ~ 70 °C• Relative humidity: 5 - 90 % (non condensing)• Housing material: metal• Dimensions (LxWxH): ca. 84.6 x 50.0 x 23.0 mmPower supply specification• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A• Output: 5.0 V / 1.0 A / 5.0 W• Ground outside,plus inside• Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm• Cable length: ca. 153 cm Package content • Converter• 4 x jumper• Power supply• User manual
AllekabelsDe Delock RS-232-naar-RS-422/485-converter verzendt data tussen apparaten met standaard RS-232- of RS-422/485-aansluiting en is geschikt voor veldbus systemen. Met zijn robuuste metalen behuizing biedt de converter verschillende bevestigingsmogelijkheden en beschermt hij tegen storingen door elektrostatische ontlading (ESD). Afsluitweerstanden: Interne afsluitweerstanden kunnen met pinschakelaars aan- of uitgeschakeld worden. Optie RS-232-verlenging: Twee RS-232-naar-RS-422/485-converters kunnen direct met elkaar verbonden worden en bieden zo als RS-232-verlenging een bereik van maximaal 1200 m. • Converter • 4 x Jumper • Netvoeding • Handleiding Kabels / Adapters Industrie RS-422/485
