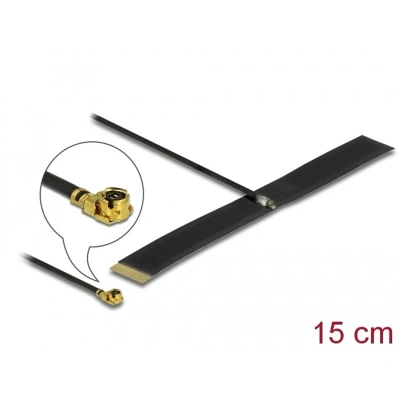

Delock LPWAN Antenna MHF® I plug 0.38 dBi 1.13 15 cm FPC internal self adhesive

Description This LPWAN antenna by Delock allows the usage of the 863 - 928 MHz band indoors. It is completely compatible to GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM and LoRa.LPWANLPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption. Specification • Connector: 1 x I-PEX Inc., MHF® I plug• Frequency range: 863 - 928 MHz• GSM, LTE, ZigBee, Z-Wave, NB-IoT, ISM, LoRa• Antenna gain: - 0.38 dBi• VSWR: 3.0• Impedance: 50 Ohm• Mounting type: self-adhesive• Operating temperature: -10 °C ~ 55 °C• Housing material: FPC• Colour: black• Cable type: coaxial• Cable type: 1.13• Cable colour: black• Cable diameter: ca. 1.13 mm• Cable attenuation: 3.2 dB @ 2.4 GHz per meter• Smallest bending radius: 4.5 mm• Dimensions (LxW): ca. 79,0 x 10,0 mm• Cable length incl. connector: ca. 15 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

DELOCK LPWAN antenne MHF I-stekker -0,38dBi 1,13 15 cm FPC intern kleefmontage
