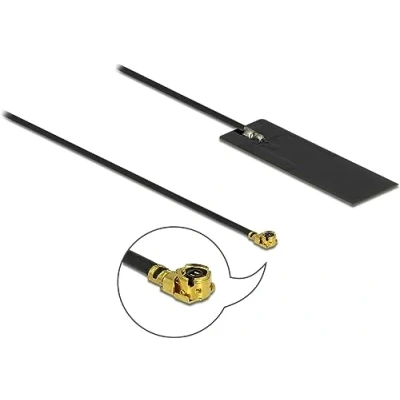

Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna MHF® I plug 2 4 dBi 15 cm PCB internal self adhesive

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification • Connector: 1 x I-PEX Inc., MHF® I plug • Frequency range: 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz • Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM • Antenna gain: 2 - 4 dBi • VSWR: 2.5 • Impedance: 50 Ohm • Mounting type: self adhesive • Operating temperature: -10 °C ~ 55 °C • Housing material: FR4 • Colour: black • Cable type: coaxial • Cable type: 1.13 • Cable colour: black • Cable diameter: ca. 1.13 mm • Cable attenuation: 3.2 dB @ 2.4 GHz per meter • Smallest bending radius: 4.5 mm • Dimensions (LxW): ca. 44.5 x 14.0 mm • Cable length incl. connector: ca. 15 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

DELOCK WLAN 802.11 ac/ax/a/h/b/g/n antenne MHF I stekker 2-4dBi 15 cm PCB interne kleefmontage
