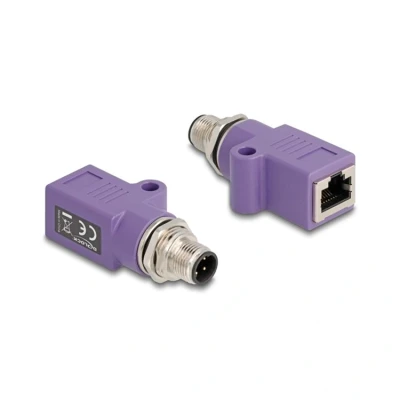

Delock M12 Adapter D kodiert 4 Pin Stecker zu RJ45 Buchse Cat.5e mit B

Onlinekabelshop.nl

Description This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.With mounting holeThe adapter can be attached to a plate with a corresponding cut-out. Specification• Connectors: 1 x M12 male 4 pin D-coded 1 x RJ45 jack 90° angled• Cat.5e specification• Installation dimensions: 16.1 x 13.6 mm• With mounting hole• Mounting hole diameter: ca. 2.7 mm• Housing material: PVC / metal• Shielded (STP)• M16 external thread• Contacts gold-plated• Operating voltage: max. 250 V• Current: M12: max. 4 A RJ45: max. 1.5 A• Operating temperature: -40 °C ~ 85 °C• Protection class: IP67 (M12), IP20 (RJ45)• Colour: violet• Dimensions (LxWxH): ca. 55.9 x 20.0 x 19.0 mm Package content • M12 adapter

Allekabels

Soort: Cat 5e Aansluiting 1: 1 x M12 Male 4-pins Aansluiting 2: 1 x RJ45 Aantal: Per stuk
