Delock M12 Steckverbinder A kodiert 4 Pin Stecker zur Montage mit Schr
Uitgelicht
|
17,98 |
Naar shop
|
| VERGELIJK ALLE AANBIEDERS (2) | ||
Beschrijving
Bol Partner

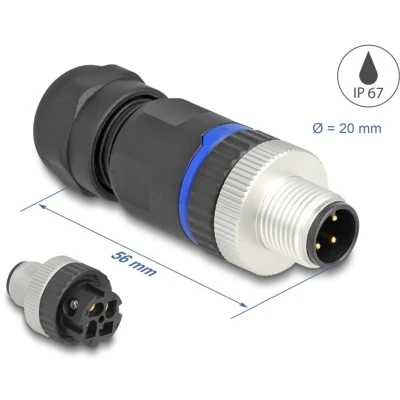

Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M12 male A-coded 4 pin 4 x screw terminal• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)• Operating voltage: max. 250 V• Current: max. 4 A• Operating temperature: -25 °C ~ 85 °C• Protection class: IP67• Cable entry max. 3.0 - 8 mm• Thread size: M12 x 1.0 mm• Housing material: PA66• Colour: black• Dimensions (LxD): ca. 56 x 20 mm System requirements • A free M12 female port Package content • Connector
Beschrijving
(2)
Description This connector by Delock can be used to connect a cable via a screw terminal connection with an M12 connector, e.g. for machine control or automation. Specification • Connectors: 1 x M12 male A-coded 4 pin 4 x screw terminal• Useable for a cable gauge range from 26 to 20 AWG (0.13 - 0.52 mm²)• Operating voltage: max. 250 V• Current: max. 4 A• Operating temperature: -25 °C ~ 85 °C• Protection class: IP67• Cable entry max. 3.0 - 8 mm• Thread size: M12 x 1.0 mm• Housing material: PA66• Colour: black• Dimensions (LxD): ca. 56 x 20 mm System requirements • A free M12 female port Package content • Connector
AllekabelsAansluiting 1: M12 male 4-pin A-codering Aansluiting 2: 4x Schroefklem Kabelinvoer: Tot 3.0 - 8 mm Stroom: 4 A Spanning: 250 volt
Productspecificaties
| Merk | Delock |
|---|---|
| Categorie | |
| EAN |
|
| Kleur |
|
| Maat |
|
| MPN |
|
