Delock PCI Express Soundcard 7.1 24 Bit / 192 kHz with TOSLINK In Out

Onlinekabelshop.nl

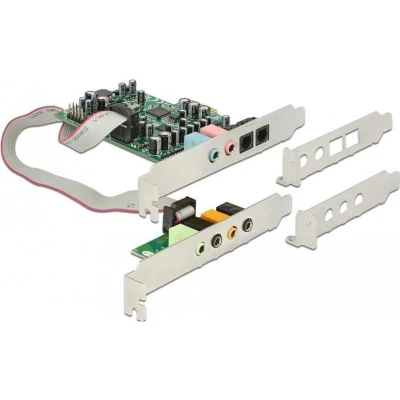

Description This PCI Express sound card by Delock extends the system with various sound inputs and outputs and has 8 sound channels. This allows devices such as speakers, headphones etc. to be connected. When used in conjunction with a headset, the sound card is ideal for applications such as Skype or gaming. By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC. Specification• Connectors: external: 1 x 3.5 mm stereo jack line-In 1 x 3.5 mm stereo jack microphone input (L, R) 1 x S/PDIF TOSLINK optical digital input 1 x S/PDIF TOSLINK optical digital output 1 x 3.5 mm stereo jack front speaker (L, R) (daughter card) 1 x 3.5 mm stereo jack Surround speaker (L, R)(daughter card) 1 x 3.5 mm stereo jack center / bass speaker (daughter card) 1 x 3.5 mm stereo jack rear speaker (daughter card) internal: 2 x 10 pin connector plug for the daughter card 1 x 4 pin header for analogue CD-In port (signal: L-G-G-R) 1 x 4 pin header for analogue CD-In port (signal: G-R-G-L) 1 x 9 pin header for front panel plug 1 x PCI Express x1, V1.1• Chipset: CMedia CM8828 multi-channel audio processor CMedia CM9882A 8-Channel HDA Codec• Up to 24 Bit / 192 kHz sampling rate for recording and playback• Signal noise ratio (SNR): ca. 92 dB• Supports ASIO andWASAPI• Supports 7.1 channel sound System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64• PC with one free PCI Express slot and one rear slot Package content • PCI Express card• Daughter card• 2 x low profile bracket• 1 x flat ribbon cable• CD ROM with driver and software• User manual

Bol Partner

DeLOCK 89640. Audio output channels: 7.1 channels, Audio quality: 24 bit, Line-out Signal-to-Noise Ratio (SNR): 92 dB. Host interface: PCI-E. Chipset: C-Media CM8828, Product colour: Green
