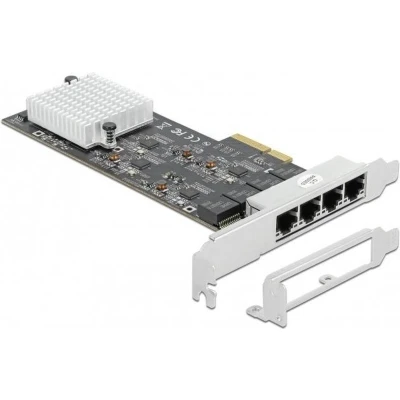

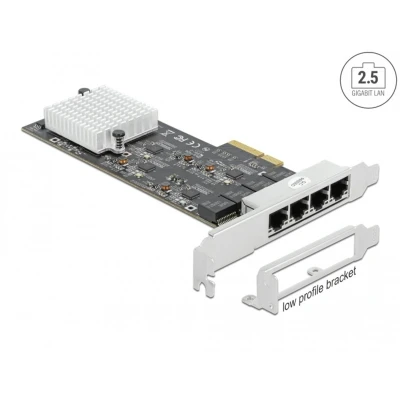

Delock PCI Express x4 Card to 4 x RJ45 2.5 Gigabit LAN RTL8125

Description The PCI Express card by Delock offers four network ports with a data transfer rate up to 2500 Mbps. NBASE-T for higher speed Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically. Specification • Connectors: external: 4 x 2.5 Gigabit LAN RJ45 jack internal: 1 x PCI Express x4, V2.1 • Chipset: Realtek RTL8125B • Data transfer rate: Ethernet up to 10 Mbps Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1000 Mbps NBASE-T with up to 2.5 Gbps PCI Express x4 up to 16 Gbps • Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab • Supports Wake On LAN (WOL) • Supports IEEE 802.1P layer 2 priority encoding • Supports IEEE 802.3x full duplex flow control • Supports IEEE 802.1Q Virtual LAN (VLAN) • Supports 16k Jumbo Frames • Supports PXE • LED indicator for link and activity System requirements • Windows 8.1/8.1-64/10/10-64 • PC with one free PCI Express slot Package content • PCI Express card • Low profile bracket • Driver CD • User manual
