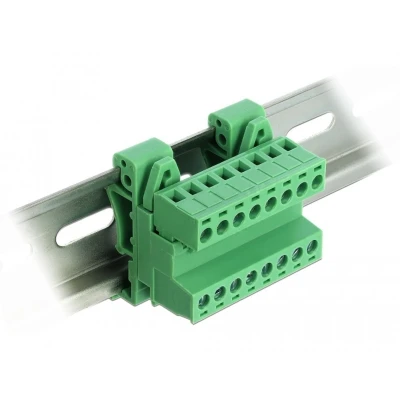

DeLOCK Terminal Block Set for DIN Rail 8 pin with pitch 5.08 mm angled

Description This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block. DIN Rail Mounting This terminal block set can be fixed on a DIN rail with a width of 35 mm. Terminal Block Set for DIN Rail () Specification • Connectors: Terminal block: 1 x 8 pin male 1 x 8 pin screw terminal Connection terminal: 1 x 8 pin female 1 x 8 pin screw terminal • Pitch: 5.08 mm • Environmental temperature: -40 °C ~ 105 °C • Useable for a cable gauge range from 24 to 12 AWG • Withstanding voltage: AC 2500 V / 1 min • Rated voltage according to: UL: 300 V, IEC: 320 V • Rated current according to: UL: 10 A, IEC: 15 A • DIN rail mounting: 35 mm • Material: plastic • Colour: green • Dimensions (LxWxH): ca. 42.50 x 32.45 x 42.45 mm Package content • Terminal block • Connection terminal • DIN rail clip
