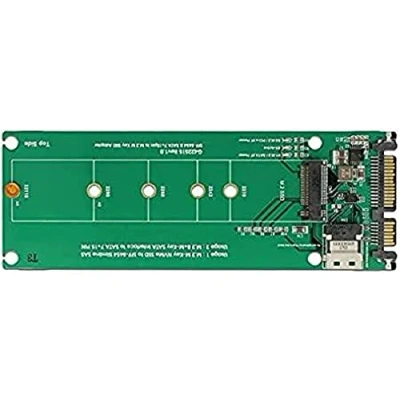

Delock U.2 SFF 8654 or SATA Converter to 1 x M.2 Key M slot

Description This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the possibility to connect a PCIe or SATA M.2 SSD. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the U.2 interface while using a PCIe M.2 SSD. Specification • Connectors: 1 x 38 pin SFF-8654 4i female (for PCIe SSDs) 1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs) 1 x 67 pin M.2 key M slot • Interface: PCIe / SATA • Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe • Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported • LEDs for power and activity • Bootable • Supports NVM Express (NVMe) • Maximum output current: 4 A • Short circuit protection, over heating protection • ESD protection up to 2 kV • Dimensions (LxWxH): ca. 145 x 51 x 9 mm System requirements • Linux Kernel 3.19 or above • Windows 7/7-64/8.1/8.1-64/10/10-64 • A free U.2 SFF-8643 interface (PCIe SSD) or • A free SATA 22 pin interface (SATA SSD) Package content • Converter • Cable SFF-8654 4i female to SFF-8643 male, length ca. 50 cm • Mounting material • User manual

Type: serial-ata Aansluitingen: intern: 1x M.2
