Delock USB 2.0 Camera Module 5.04 Megapixel 62 Verticale Rand Autofocu

Bol Partner

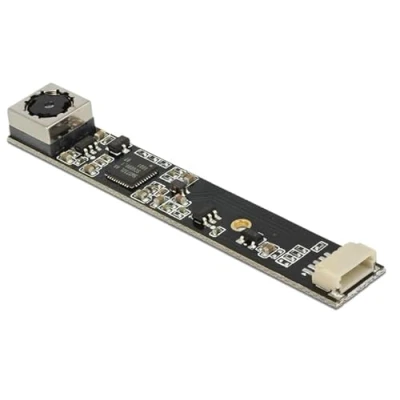

Description The USB 2.0 camera module by Delock offers a very compact design, high resolution and low power consumption. It is ideally suited for integration into devices. The use of a photosensitive sensor with back side illumination expands the scope of this module. Specification • Connector: USB 2.0 5 pin SMT female SMT, 1 mm pitch • Resolution: 5.04 mega pixel • With optical IR filter • Standard SCCB interface (I²C Bus) • Output support for RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422 and compression • Maximum resolution: QSXGA (2592 x 1944) • Automatic image control functions including - Automatic exposure control (AEC) - Automatic white balance (AWB) - Automatic band filter (ABF) - Automatic black-level calibration (ABLC) • Image quality controls including colour saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise canceling, and automatic 50/60 Hz luminance detection • Supports scaling • Power consumption: Sensor suspend: 90 mA Sensor active: 140 mA ± 5 mA @ 640 x 480 pixel • Operating voltage: 5 V DC • Operating temperature: 5 °C ~ 50 °C • Relative humidity during operation: max. 80 % • Sensor size: 1/4 inch • Sensitivity: 0.6 V (lx s) • Signal to noise ratio: 36 dB • Dynamic range: 68 dB • Auto focus: from 0.1 m • Lens: F/2.8 • Frame rates: 30 fps @ HVGA, VGA, XGA, 720p, QVGA 15 fps @ UXGA, 1080p, QXGA 7 fps @ 2592 x 1944 • Dimension (LxWxH): ca. 60 x 8 x 6.3 mm System requirements • Windows 7/8.1/10• MS DirectX 9.0c and above• Linux 2.6.15 and above with Video4Linux• CPU minimum P4 1.4 GHz, 128 MB RAM Package content • Camera module
