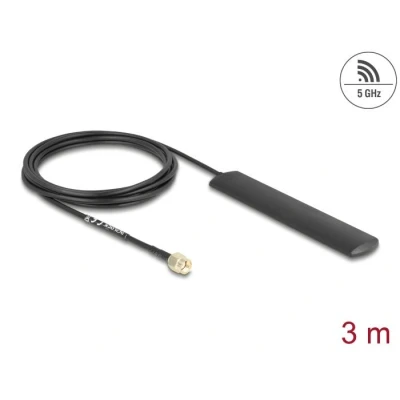

Delock WiFi 5.8 GHz Antenna RP SMA plug 3 dBi omnidirectional with connection cable RG 174 m black self adhesive

Onlinekabelshop.nl

Description This WiFi 5.8 GHz antenna by Delock allows the usage of WiFi frequency range 5.15 GHz to 5.85 GHz indoors. Specification• Connector: 1 x RP-SMA plug• Frequency range: 5.15 GHz - 5.85 GHz• Antenna gain: 3 dBi• Impedance: 50 Ohm• VSWR: 1.5:1• Cable type: RG-174• Cable attenuation: 0.9 dB @ 800 MHz per meter• Cable colour: black• Cable length: ca. 3 m• Polarisation: linear, vertical• Operating temperature: -40 °C ~ 70 °C• Housing material: ABS• Colour: black• Dimensions (LxWxH): ca. 115 x 22 x 5 mm System requirements • Device with a free RP-SMA jack Package content • Antenna

Allekabels

Deze Delock WiFi 5,8 GHz antenne maakt gebruik mogelijk van het WiFi-frequentiebereik van 5,15 GHz tot 5,85 GHz binnenshuis. • Apparaat met vrije RP-SMA-aansluiting • Antenne Hoogfrequentietechnologie Antennes WLAN
