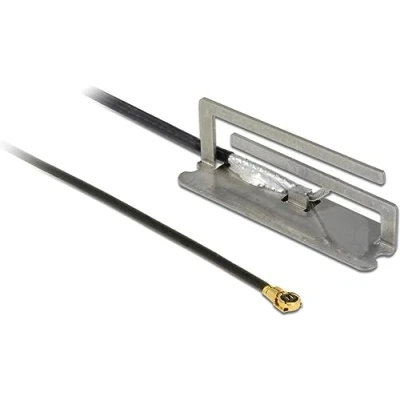

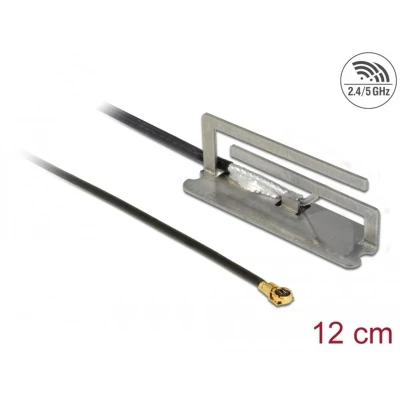

Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenna MHF® 4L plug 1.6 dBi 1.13 12 cm PIFA internal

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. PIFA antennas (Planar Inverted F-Shaped Antenna) are particularly very flat antennas that can be integrated directly on the PCB. Specification • Connector: 1 x I-PEX Inc., MHF® 4L plug • Frequency range: 2400 - 2500 MHz 5150 - 5850 MHz • Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM • Antenna gain: 1.6 dBi • VSWR: 2.5 • Impedance: 50 Ohm • Operating temperature: -10 °C ~ 55 °C • Colour: black • Cable type: coaxial • Cable type: 1.13 • Cable colour: black • Cable diameter: ca. 1.13 mm • Cable attenuation: 3.2 dB @ 2.4 GHz per meter • Smallest bending radius: 4.5 mm • Dimensions (LxWxH): ca. 21.5 x 7.0 x 6.0 mm • Length incl. connectors (L): ca. 12 cm System requirements • Device with one free I-PEX Inc., MHF® 4L port Package content • Antenna

❃86392. Niveau van de winst van de antenne (max): 1,6 dBi Standaard netwerk: IEEE 802.11 a, IEEE 802.11 ac, IEEE 802.11 IEEE 802.11 h. Impedantie: 50 Ohm. Aansluittype: type antenne f. Breedte: 60 mm Diepte: 215 mm Hoogte: 70 mm
