Delock WLAN 802.11 ac/ax/a/h/b/g/n Antenne MHF® I aansluiting 2,7 3

Onlinekabelshop.nl

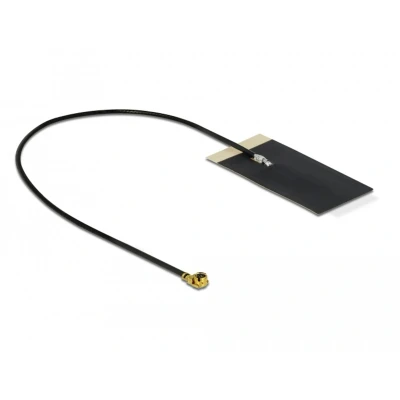

Description This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors. Specification• Connector: 1 x I-PEX Inc., MHF® I plug• Frequency range: 2400 MHz - 2500 MHz 5150 MHz - 5875 MHz• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM• Antenna gain: 2.7 - 3.0 dBi• VSWR: 2.5• Impedance: 50 Ohm• Mounting type: self adhesive• Operating temperature: -10 °C ~55 °C• Housing material: FPC• Colour: black• Cable type: coaxial• Cable type: 1.13• Cable colour: black• Cable attenuation: 3.2 dB @ 2.4 GHz per meter• Cable diameter: ca. 1.13 mm• Smallest bending radius: 4.5 mm• Dimensions (LxW): ca. 36.33 x 18.60 mm• Cable length incl. connector: ca. 15 cm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

Bol Partner

DeLOCK 12611. Antenne versterkingsniveau (max): 3 dBi, Frequentieband: 2.4 - 2.5; 5.15 - 5.875 GHz, Netwerkstandaard: IEEE 802.11ax,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n. Aansluiting antenne: MHF, Geslacht connector: Mannelijk, Lengte snoer: 0,15 m. Breedte: 18,6 mm, Hoogte: 36,3 mm. Type verpakking: Polybag
