Mini camera Delock

Onlinekabelshop.nl

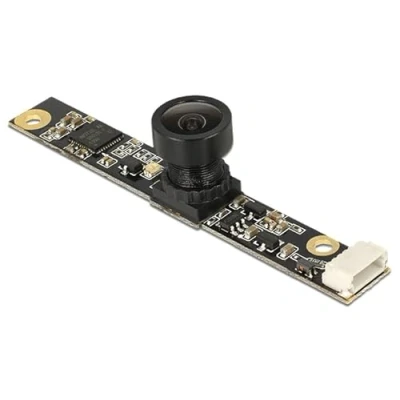

Description This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module. Specification• Connector: 1 x 5 pin USB 2.0 pin header female SMT, pitch 1.00 mm• Resolution: 3.14 megapixel• With optical IR filter• Standard SCCB interface (I²C Bus)• Output support for RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422 and compression• Maximum resolution: QXGA (2048 x 1536)• Automatic image control functions including: Automatic exposure control (AEC) Automatic white balance (AWB) Automatic band filter (ABF) Automatic black-level calibration (ABLC)• Image quality controls including colour saturation, gamma, sharpness (edge enhancement), lens correction,white pixel canceling, noise canceling, and automatic 50 / 60 Hz luminance detection• Supports scaling• Power consumption: Sensor suspend: 90 mA sensor active: 430 mA ± 5 mA @ 640 x 480 pixel• Operating voltage: 5 V DC• Operating temperature: 5 °C ~ 50 °C• Operating humidity: ≤80 %• Sensor size: 1/4"• Sensitivity: 0.6 V / lx s• Signal-to-noise ratio (SNR): ca. 36 dB• Dynamic range: 68 dB• Fix focus: 0.3 m - infinite• Aperture: F/2,5• Frame rates: 30 fps @ HVGA, VGA, XGA, 720p, QVGA 15 fps @ UXGA, 1080p, QXGA• Dimensions (LxWxH): ca. 60 x 8 x 13 mm System requirements •PC with UVC support• Windows Vista/7/8.1/10/10-64• DirectX 9.0c or above• Linux Kernel 2.6.15 and above with Video4Linux• Minimum CPU P4 1.4 GHz, 512 MB RAM Package content • Camera Module• CD with user manual

Amazon

DeLOCK 95978 extra notebook-component voor camera
