NaviLock compatible NL 603P 61841

Onlinekabelshop.nl

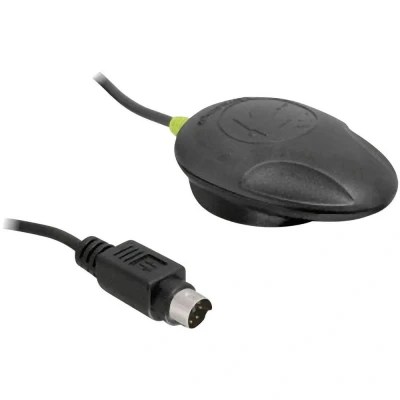

Description The MD6 serial GPS Receiver based on u-blox 6 chipset has a built-in antenna for high sensitivity. You can use this GPS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. Specification• Connector: MD6 Navilock plug (USB or serial cable are optional available)• Chipset: u-blox 6 UBX-G6000-BT• Frequency: GPS: L1, 1575.4200 MHz• Accepts the signals of up to 50 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Baud rate: 9600 (up to 115200)• Update rate: up to 5 Hz• Sensibility max. -162 dBm• IPX6 protection class• Magnetic, non-slip on the bottom• LED-indicator for GPS status• Operating temperature: -20 °C ~ 60 °C• Power supply: 5V DC• Current consumption: max. 80 mA• Cold start in ca. 25 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Cable length: ca. 1.5 m• Dimensions (LxWxH): ca. 65 x 45 x 22 mm System requirements • Windows 98SE/ME/2000/XP/Vista/7/8.1/10, Windows Mobile 2003/5/6, Mac OSX , Linux Kernel 2.6• MD6 connection cable Package content • MD6 serial receiver• Navilock support CD incl. driver and user manual

Conrad

De GPS-ontvanger met de u-blox 6 SuperSence chipset heeft een ingebouwde actieve antenne. De MD6 universele aansluiting maakt de aansluiting van optionele USB- of seriële aansluitkabels mogelijk. In...
