Navilock NL 280GG SMA Stecker GLONASS+GPS Multi GNSS Antenne 5 m Nav

Onlinekabelshop.nl

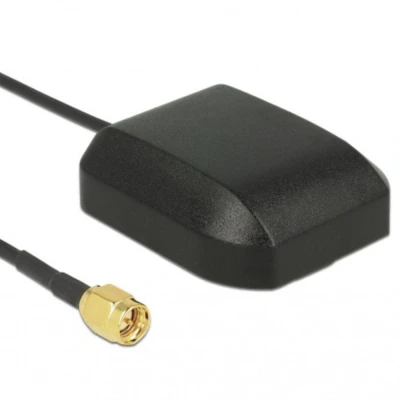

Description This external Navilock GNSS antenna is equipped for the simultaneous reception of GPS and GLONASS signals. Specification• External active additional antenna for GNSS receivers• Connector: SMA plug• Polarisation: RHCP• Frequency range: GPS: 1575,42 MHz +/- 1.023 MHz GLONASS: 1598,0625 MHz ~ 1605,375 MHz• Bandwidth (C/A): GPS:>2 MHz GLONASS:>8 MHz• Gain: 5 dBic (7cm x 7cm ground plane)• Internal patchantenna: 25 x 25 x 4 mm• VSWR: 1.5LAN• Gain: 30 dBi• Cable category: coaxial• Cable typ: RG-174• Cable length: 3 m• Cable colour: black• Impedance: 50 Ohm• Voltage: 2.80 ~ 5.00 V• Current: typ. 13.50 mA @ 3.0 V•VSWR: 2.0• Imedanz: 50 Ohm• Protection class: IP66• Weight: 0.150 kg• Dimension (LxWxH): ca. 44.00 x 37.00 x 14.50 mm• Magnetical bottom System requirements • Device with free SMA connector Package content • GNSS antenna

Allekabels

Kabeltype: RG-174 Aansluiting: SMA-stekker Impedantie: 50 Ohm Kabeldemping: 3,9 dB Kabellengte: 3 meter
