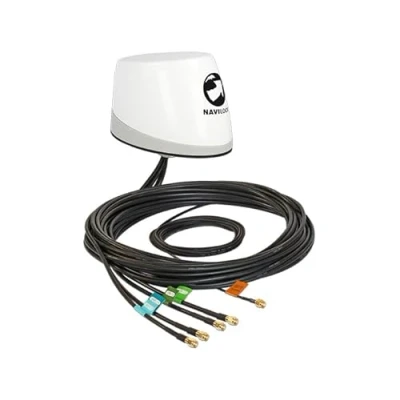

Navilock NL 400 Multiband GNSS 5G LTE MIMO WLAN IEEE 802.11 ac/a/h/b/g/n Antenna 5 x RP SMA omnidirektional roof mount outdoor

Onlinekabelshop.nl

Description This high quality multi band antenna is composed of five physically separate transmitting and receiving units. The GNSS patch antenna receives signals from the Global Navigation Satellite Systems GPS, GALILEO and GLONASS. Two PCB antennas in MIMO mode working in all popular 5G and LTE bands. Two other PCB antennas in MIMO mode cover off the WLAN area in the dual band completely. Furthermore, this multi-band antenna is capable of GSM, UMTS, Bluetooth, Z-Wave and ZigBee signals to be transmitted. The NL-400 delivers and transmits signals in all circumstances reliably, quickly and accurately.5G the new mobile radio standard5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.The 5G standard promises more throughput, capacity and low latency. Specification• Connectors: 5 x RP-SMA plug• GNSS GPS GALILEO GLONASS: Frequency range: GPS, GALILEO: L1, 1.5754200 GHz GLONASS: G1, 1.6025625 - 1.6155000 GHz Gain: 4 dBi VSWR:

Bol Partner

Navilock NL-400. Antenne versterkingsniveau (max): 30 dBi, Impedantie: 50 Ohm. Soort antenne: Omnidirectionele antenne, Aansluiting antenne: RP-SMA, Geslacht connector: Vrouwelijk. Stroomverbruik: 16 mA. Breedte: 106 mm, Diepte: 160 mm, Hoogte: 102 mm

Amazon

Navilock NL-400 antenneversterking (max): 30 dBi Soort antenne: RP-SMA Impedantie: 50 Ohm. Soort antenne: Omni-directionele antenne Diepte: 160 mm. Geslacht: vrouwelijk. Stroomverbruik: 16 mA. Dikte: 106 mm. Hoogte: 102 mm.
