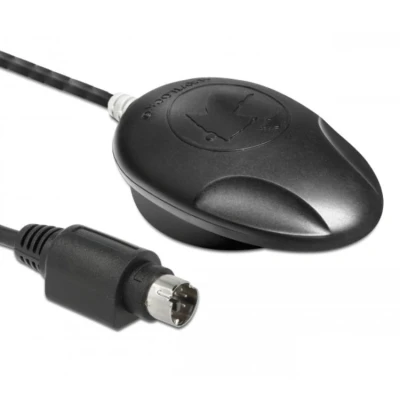

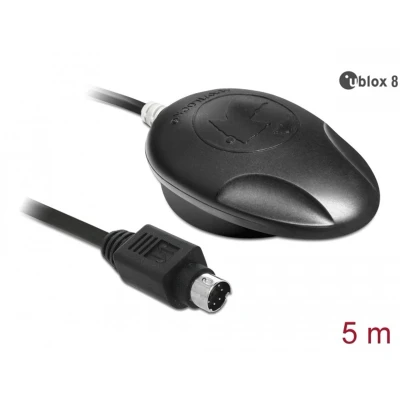

Navilock NL 8005P MD6 seriell PPS Multi GNSS Empfänger u blox 8 5 m

Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. Specification • Connector: MD6 Navilock plug (RS-232) (USB or serial cable are optional available)• Chipset: u-blox 8 UBX-M8030-KT• Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0.5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz• Accepts the signals of up to 72 satellites at the same time• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Auto Baud Rate up to 115200 bps• PPS signal on pin 6 (LVTTL 3.3 V)• Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS)• Sensibility max. -167 dBm• IPX6 protection class• Magnetic, non-slip on the bottom• LED-indicator for GPS status• Operating temperature: -20 °C ~ 60 °C• Power supply: 5 V DC• Current consumption: max. 45 mA• Cold start in ca. 26 seconds• Hot start in ca. 1 second• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Cable length: ca. 5 m• Dimensions (LxWxH): ca. 65 x 45 x 22 mm Microsoft Sensor and Location Platform (Website)• Profit from Windows applications (e.g. weather, maps, etc)• Supporting the GNSS location platform API (32 bit) System requirements • Windows Vista/7/8/8.1/10, Linux Kernel 2.6, Mac OS X• MD6 connection cable Package content • MD6 serial receiver• Navilock support CD incl. driver and user manual

Aansluiting: MD6 aansluitstekker GPS frequentie: L1, 1575,4200 MHz Updatesnelheid: 18 Hz, 10 Hz Gevoeligheid: Maximaal -167 dBm Kabellengte: 5 meter
