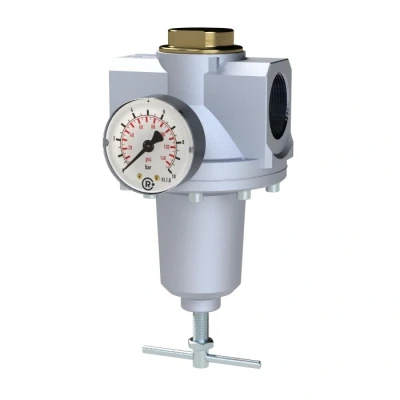

REDUCEERVENTIEL 1 1/2" 16 BAR
Beschrijving
K&W Tools
REDUCEERVENTIEL 1 1/2" 0.5-16 BAR Thread G 1 1/2Size 4Max. input pressure 25 barHousing die-cast zinc, painted silverSealant NBRMin. medium temperature -10 °CMax. medium temperature 60 °CMin. ambient temperature -10 °CMax. ambient temperature 60 °CFlow rate 16500 l/minMin. control range 0.5 barMax. control range 16 barPressure gauge display min. 0 barPressure gauge display max. 25 barDN 35A 125.0 mmB 252.5 mmC 52.0 mmD 200.5 mmSeries StandardFlow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 barCountry of origin DECustoms tariff number 84811099REACH SVHC1 substance name LeadCAS no. SVHC 1 7439-92-1RoHS materials notice Rohs compliantREACH Info contains SVHC substance
Beschrijving
(2)
REDUCEERVENTIEL 1 1/2" 0.5-16 BAR Thread G 1 1/2Size 4Max. input pressure 25 barHousing die-cast zinc, painted silverSealant NBRMin. medium temperature -10 °CMax. medium temperature 60 °CMin. ambient temperature -10 °CMax. ambient temperature 60 °CFlow rate 16500 l/minMin. control range 0.5 barMax. control range 16 barPressure gauge display min. 0 barPressure gauge display max. 25 barDN 35A 125.0 mmB 252.5 mmC 52.0 mmD 200.5 mmSeries StandardFlow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 barCountry of origin DECustoms tariff number 84811099REACH SVHC1 substance name LeadCAS no. SVHC 1 7439-92-1RoHS materials notice Rohs compliantREACH Info contains SVHC substance
