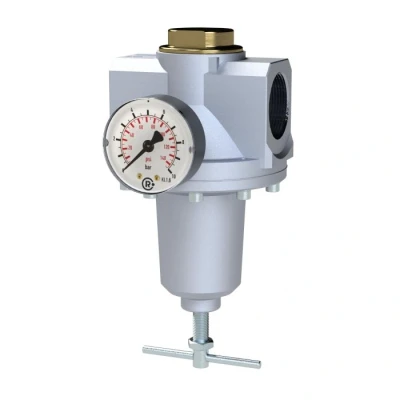

REDUCEERVENTIEL 1 1/4" 16 BAR
Uitgelicht
|
339,00 |
Naar shop
|
Beschrijving
K&W Tools
REDUCEERVENTIEL 1 1/4" 0.5-16 BAR Thread G 1 1/4 Size 4 Max. input pressure 25 bar Housing die-cast zinc, painted silver Sealant NBR Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 16500 l/min Min. control range 0.5 bar Max. control range 16 bar Pressure gauge display min. 0 bar Pressure gauge display max. 25 bar DN 25 A 125.0 mm B 252.5 mm C 52.0 mm D 200.5 mm Series Standard Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin IT Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance
Vergelijk aanbieders (1)
Beschrijving
(1)
REDUCEERVENTIEL 1 1/4" 0.5-16 BAR Thread G 1 1/4 Size 4 Max. input pressure 25 bar Housing die-cast zinc, painted silver Sealant NBR Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 16500 l/min Min. control range 0.5 bar Max. control range 16 bar Pressure gauge display min. 0 bar Pressure gauge display max. 25 bar DN 25 A 125.0 mm B 252.5 mm C 52.0 mm D 200.5 mm Series Standard Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin IT Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance
