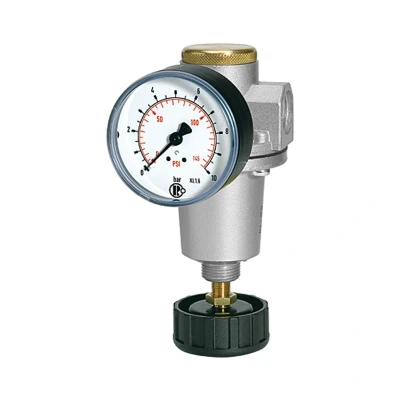

REDUCEERVENTIEL 1/2" 10 BAR RIEGLER

K&W Tools

REDUCEERVENTIEL 1/2" 0.5 - 10 BAR  Thread G 1/2Size 2Max. input pressure 25 barHousing die-cast zinc, painted silverSealant NBRMin. medium temperature -10 °CMax. medium temperature 60 °CMin. ambient temperature -10 °CMax. ambient temperature 60 °CFlow rate 2200 l/minMin. control range 0.5 barMax. control range 10 barPressure gauge display min. 0 barPressure gauge display max. 16 barDN 15A 70.0 mmB 145.9 mmC 34.0 mmD 111.9 mmSeries StandardFlow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 barCountry of origin DECustoms tariff number 84811099REACH SVHC1 substance name LeadCAS no. SVHC 1 7439-92-1RoHS materials notice Rohs compliantREACH Info contains SVHC substanceClass name EASY

Bol Partner

Standaard Tegendrukonafhankelijke, pilotgestuurde membraandrukregelaar met secundaire ontluchting, binnendraad, incl. manometer Kenmerken A: 70 mm C: 34 mm D: 114,4 mm B: 148,4 mm Afdichtingsmateriaal: NBR Model: BG II DN: 15 mm Regelbereik: 0,5 - 10 bar

Amazon

Drukregelaar »standaard«, incl. manometer, BG 2, G 1/2, PE max. 25 bar, mediumtemperatuur max. 60 °C, regelbereik 0,5-10 bar.
