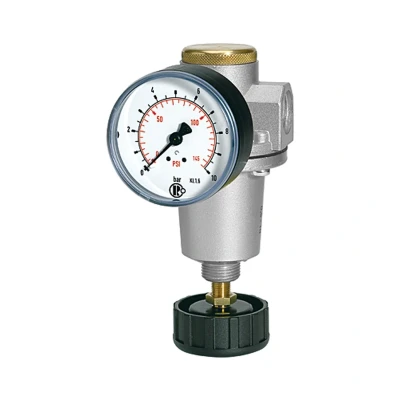

REDUCEERVENTIEL 3/8" 10 BAR RIEGLER

REDUCEERVENTIEL 3/8" 10 BAR Thread G 3/8 Size 1 Max. input pressure 16 bar Housing die-cast zinc, painted silver Sealant NBR Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 1000 l/min Min. control range 0.5 bar Max. control range 10 bar Pressure gauge display min. 0 bar Pressure gauge display max. 16 bar DN 6 A 54.0 mm B 129.5 mm C 32.0 mm D 97.5 mm Series Standard Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY

Drukregelaar »standaard«, incl. manometer, BG 1, G 3/8, PE max. 16 bar, mediumtemperatuur max. 60 °C, regelbereik 0,5-10 bar.
