RIEGLER

REDUCEERVENTIEL 1/4" 0.1 3 BAR

Name: REDUCEERVENTIEL 1/4 0.1 3 BAR
Brand: RIEGLER
SKU: 8ab1719f95e9d9d2da9247b4a02fc291

1/1

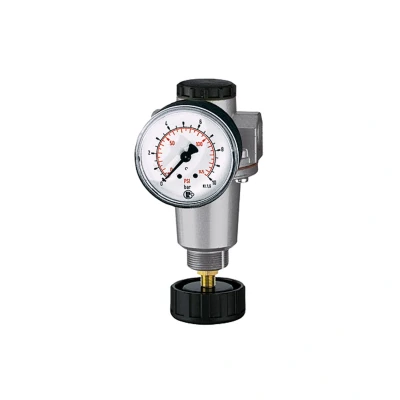

Afbeelding van REDUCEERVENTIEL 1/4" 0.1 3 BAR

Amazon Marketplace

Prijzen vanaf

62,97

Uitgelicht

	62,97	Naar shop
	62,97	Naar shop
VERGELIJK ALLE AANBIEDERS (3)

Beschrijving

K&W Tools REDUCEERVENTIEL 1/4" 0.1-3 BAR Thread G 1/4 Size 1 Max. input pressure 16 bar Housing die-cast zinc, painted silver Sealant NBR Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 1000 l/min Min. control range 0.1 bar Max. control range 3 bar Pressure gauge display min. 0 bar Pressure gauge display max. 4 bar DN 6 A 54.0 mm B 129.5 mm C 32.0 mm D 97.5 mm Series Standard Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY

Lees meer

Vergelijk aanbieders (3)

Sorteren op:

€ 62,97 Gratis verzending

€ 72,54 € 5,95 verzendkosten Totaal € 78,49

Beschrijving (1)

REDUCEERVENTIEL 1/4" 0.1-3 BAR Thread G 1/4 Size 1 Max. input pressure 16 bar Housing die-cast zinc, painted silver Sealant NBR Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 1000 l/min Min. control range 0.1 bar Max. control range 3 bar Pressure gauge display min. 0 bar Pressure gauge display max. 4 bar DN 6 A 54.0 mm B 129.5 mm C 32.0 mm D 97.5 mm Series Standard Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY

Lees meer
