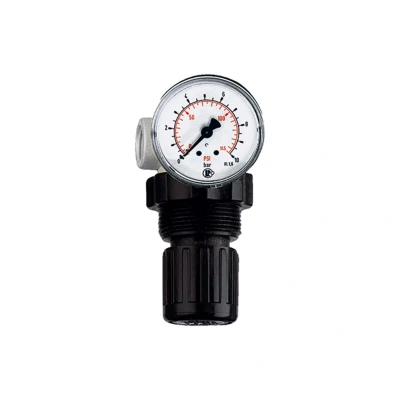

REDUCEERVENTIEL 1/8 0.5 10 BAR

K&W Tools

REDUCEERVENTIEL 1/8 0.5-10 BAR Thread G 1/8 Size 0 Max. input pressure 25 bar Housing die-cast zinc, painted silver Sealant Elastollan/TPU Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 450 l/min Min. control range 0.5 bar Max. control range 10 bar Pressure gauge display min. 0 bar Pressure gauge display max. 16 bar DN 5 A 43.0 mm B 72.5 mm C 9.5 mm  D 63.0 mm Series Standard-mini Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY Spring bonnet POM

Amazon

Drukregelaar "standaard mini" incl. manometer, BG 0, G 1/8, PE max. 28 bar, Med.-omgevingstemp. Maximale 60 °C, regelbereik 0,5-10,0 bar
